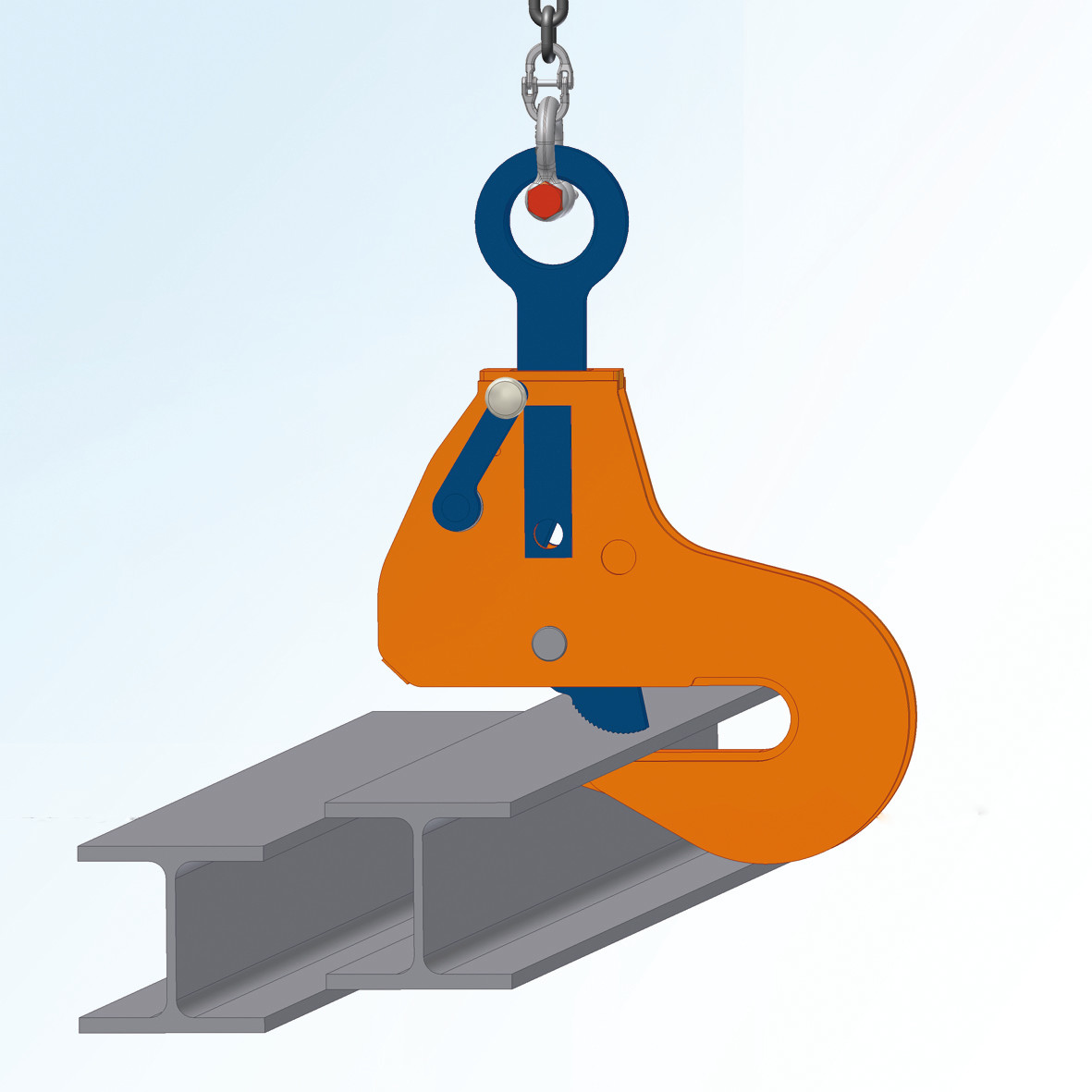

Crosby IPBSNZ IP Beam Clamps image

Crosby IPBSNZ IP Beam Clamps

  • IPBHZ: Available in capacities of .75 through 12 metric tons.
  • IPBHZ: Wide variety of jaw openings available: 0 to 1.57".
  • IPBSNZ: Available in capacities of 1.5 through 4.5 metric tons.
  • IPBSNZ: Wide variety of jaw openings available: 0 to 2.00".
  • Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
  • Individually Proof Tested to 2 times the Working Load Limit with certification.
  • Company name (Crosby IP), logo, Working Load Limit and jaw opening permanently stamped on body.
  • Each product is individually serialized, with the serial number and Proof Load test date stamped on body. User manual with test certificate is included with each clamp.
  • Optional IP-5000 Stinger assembly available. Allows for easy connection between the clamp and hoist hook.
  • Minimum WLL of 10% of Maximum WLL.
  • Maintenance and repair kits are available.
  • Manufactured by an ISO 9001 facility.
  • All sizes are RFID equipped.
  • WLL 1 (t): 3
  • Weight Each (lb): 48.5
  • WLL 1 (t): 4.5
  • Weight Each (lb): 67.2
  • WLL 1 (t): 1.5
  • Weight Each (lb): 30.9
  • UPC: 662547638681
  • Product Length (in): 16.04
  • Product Width (in): 21.3
  • Product Height (in): 4.55
  • UPC: 662547636809
  • Product Length (in): 17.99
  • Product Width (in): 22.71
  • Product Height (in): 5.14
  • UPC: 662547697510
  • Product Length (in): 12.56
  • Product Width (in): 18.38
  • Product Height (in): 3.09
