Swivel Hoist Rings

Crosby® HR-1000M Swivel Hoist Rings

  • Forged bail provides the following:
    • Easily readable "Raised Lettering" showing the name Crosby or "CG" and PIC Code for material traceability.
    • Greater durability providing the increased "Toughness" desired in potentially abusive field conditions.
    • Larger opening than standard Hoist Ring bail.
  • Top washer is color coded for easy identification (Red for UNC threads and Silver for Metric threads)
  • The Working Load Limit and Recommended Torque value are permanently stamped into each washer.
  • Individually Proof Tested to 2-1/2 times Working Load Limit.
  • Available in both UNC Thread and Metric Thread style.
  • Metric bolt specification is a Grade 12.9 Alloy socket head cap screw to DIN 912. UNC bolt specification is an alloy socket head cap screw to ASTM A 574.
  • BOLT SIZE IDENTIFICATION: The size of the bolt will be stated as in the drawing. Illustration shows meaning of each dimension given.
  • Frame 2 and larger are RFID EQUIPPED.
Learn More

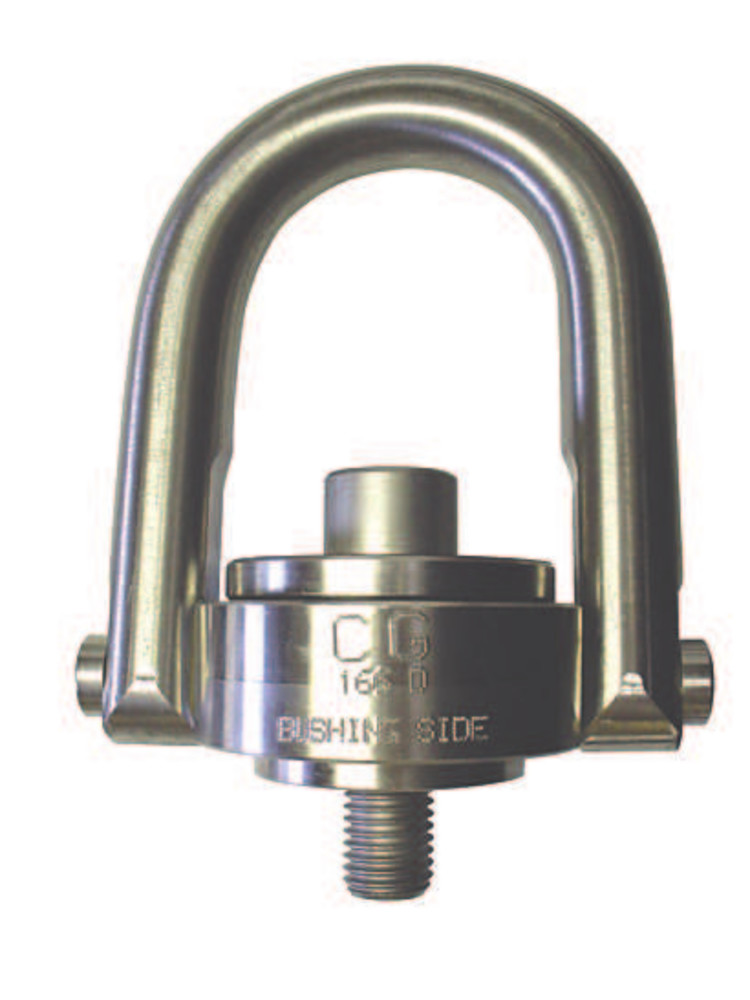

Crosby® SS-125UNC Swivel Hoist Rings

  • All components are 316 stainless steel, except bolt retainers, which are made from 15-7 PH (UNS 15700) magnetic stainless steel.
  • Rated at 100 percent at 90 degree angle.
  • Each product has a Product Identification Code (PIC) for material traceability, along with the Working Load Limit and the name Crosby or "CG" stamped into it.
  • Individually proof tested to 2 times the Working Load Limit with certification.
  • Fatigue Rated to 20,000 cycles at 1-1/2 times the Working Load Limit.
  • Washer is color-coded for easy identification (Red - UNC thread).
  • Bolt specification is 316 stainless steel socket head cap screw to ASTM F837 Group 1 (316).
  • BOLT SIZE IDENTIFICATION: The size of the bolt will be stated as in the drawing above. Illustration shows meaning of each dimension given.
  • Frame 2 and larger are RFID equipped.
Learn More

Crosby® HR-1200 Swivel Hoist Rings

  • Body components are alloy steel - Quenched & Tempered.
  • Rated at 100% of Working Load Limit for angles up to 90 degrees.
  • Each product is stamped with a Product Identification Code (PIC) for material traceability, along with a Working Load Limit, and the name Crosby or “CG.”
  • Hoist ring body is furnished with a yellow chromate finish for improved corrosion resistance.
  • Utilize standard Crosby Red Pin® Shackles to connect to wire rope or synthetic slings (sold separately).
  • Multiple bolt lengths available to meet specific application requirements.
  • Individually Proof Tested to 2-1/2 times Working Load Limit.
  • All sizes are RFID equipped.
Learn More

Crosby® HR-125 Swivel Hoist Rings

  • Top washer has the following features:
    • The Working Load Limit and recommended torque value are permanently stamped into each washer.
    • Washer is color-coded for easy identification: Red - UNC thread.
  • Individually Proof Tested to 2-1/2 times Working Load Limit.
  • Bolt specification is an alloy socket head cap screw to ASTM A 574.
  • All threads listed are UNC.
  • BOLT SIZE IDENTIFICATION: The size of the bolt will be stated as in the drawing above. Illustration shows meaning of each dimension given.
  • Frame 2 and larger are RFID equipped.
Learn More

Crosby® HR-1000 Swivel Hoist Rings

  • Forged bail provides the following:
    • Easily readable raised lettering showing the name Crosby or "CG" and PIC for material traceability.
    • Greater durability providing the increased "Toughness" desired in potentially abusive field conditions.
    • Larger opening than standard hoist ring bail.
  • Top washer is color-coded for easy identification (Red for UNC threads and Silver for Metric threads)
  • The Working Load Limit and recommended torque value are permanently stamped into each washer.
  • Individually Proof Tested to 2-1/2 times Working Load Limit.
  • Available in both UNC thread and Metric thread style.
  • UNC bolt specification is an alloy socket head cap screw to ASTM A 574. Metric bolt specification is a Grade 12.9 alloy socket head cap screw to DIN 912.
  • BOLT SIZE IDENTIFICATION: The size of the bolt will be stated as in the drawing. Illustration shows meaning of each dimension given.
  • Frame 2 and larger are RFID equipped.
Learn More

Crosby® HR-1000MCT Swivel Hoist Rings

  • All load bearing components are heat treated, Quenched & Tempered alloy steel.
  • All components, with the exception of the retaining ring, are produced with maximum material hardness of 34 HRc.
  • All primary load bearing components have Charpy impact testing. The body, bushing, washer and bail meet impact requirements of 31 ft-lb min. avg. at -4°F. The bolt meets impact requirements of 20 ft-lb min. avg. at -150°F.
  • Individually magnetic particle inspected with certification.
  • Forged bail provides the following:
    • Easily readable raised lettering showing the name Crosby or "CG" and PIC Code for material traceability.
    • Greater durability providing the increased toughness desired in potentially abusive field conditions.
    • Larger opening than standard hoist ring bail.
  • Bolt specification is an alloy socket head cap screw to ASTM A320 Grade L7 or L43.
  • Top washer is color-coded for easy identification (blue for UN threads and grey for Metric threads).
  • The Working Load Limit and recommended torque value are permanently stamped into each washer.
  • Individually Proof Tested to 2 times Working Load Limit (90° and in-line).
  • BOLT SIZE IDENTIFICATION: The size of the bolt will be stated as in the drawing above. Illustration shows meaning of each dimension given.
  • Type approval and certification in accordance with DNV Offshore Standard DNV-OS-E101, Drilling Plant, Standard for Certification DNVGL-ST-0378, Lifting Appliances, and DNVGL-SI-0166.
  • Frame 2 and larger are RFID equipped.
  • Individually serialized.
  • 100% MPI all primary load bearing components.
  • Coating: Thermo-diffusion galvanized.
  • Optional bolt sizes available upon request.
Learn More

Crosby® HR-1000CT Swivel Hoist Rings

  • All load bearing components are heat treated, Quenched & Tempered alloy steel.
  • All components, with the exception of the retaining ring, are produced with maximum material hardness of 34 HRc.
  • All primary load bearing components have Charpy impact testing. The body, bushing, washer and bail meet impact requirements of 31 ft-lb min. avg. at -4°F. The bolt meets impact requirements of 20 ft-lb min. avg. at -150°F.
  • Individually magnetic particle inspected with certification.
  • Forged bail provides the following:
    • Easily readable raised lettering showing the name Crosby or "CG" and PIC for material traceability.
    • Greater durability providing the increased toughness desired in potentially abusive field conditions.
    • Larger opening than standard hoist ring bail.
  • Bolt specification is an alloy socket head cap screw to ASTM A320 Grade L7 or L43.
  • Top washer is color-coded for easy identification (blue for UN threads and grey for Metric threads).
  • The Working Load Limit and recommended torque value are permanently stamped into each washer.
  • Individually Proof Tested to 2 times Working Load Limit (90° and in-line).
  • BOLT SIZE IDENTIFICATION: The size of the bolt will be stated as in the drawing above. Illustration shows meaning of each dimension given.
  • Type approval and certification in accordance with DNV Offshore Standard DNV-OS-E101, Drilling Plant, Standard for Certification DNVGL-ST-0378, Lifting Appliances, and DNVGL-SI-0166.
  • Frame 2 and larger are RFID equipped.
  • Individually serialized.
  • 100% MPI all primary load bearing components.
  • Coating: Thermo-diffusion galvanized.
  • Optional bolt sizes available upon request.
Learn More

Crosby® HR-125M Swivel Hoist Rings

  • Top washer has the following features:
    • The Working Load Limit and recommended torque value are permanently stamped into each washer.
    • Washer is color-coded for easy identification: Silver - Metric thread.
  • Individually Proof Tested to 2-1/2 times Working Load Limit.
  • Bolt specification is a Grade 12.9 alloy socket head cap screw to DIN 912. All threads listed are metric (ASME B18.3.1m).
  • Designed to be used with ferrous workpiece only.
  • BOLT SIZE IDENTIFICATION: The size of the bolt will be stated as in the drawing above. Illustration shows meaning of each dimension given.
  • Frame 2 and larger RFID equipped.
Learn More

Crosby® HR-100 Swivel Hoist Rings

  • Forged bail provides the following:
    • Easily readable raised lettering showing the name Crosby or “CG” and PIC for material traceability.
    • More durability provides the increased toughness desired in potentially abusive field conditions.
    • Larger opening than standard hoist ring bails.
  • 180 degree pivot action at full capacity.
  • Bolts included as part of assembly.
  • Individually Proof Tested to 2-1/2 times Working Load Limit.
  • UNC Bolt specification is a Grade 8 alloy socket head cap screw to ASTM A574.
  • Frame 2 and larger are RFID equipped.
Learn More

Crosby® HR-1200M Swivel Hoist Rings

  • Body components are alloy steel - Quenched & Tempered.
  • Rated at 100% of Working Load Limit for angles up to 90 degrees.
  • Each product is stamped with a Product Identification Code (PIC) for material traceability, along with a Working Load Limit, and the name Crosby or "CG."
  • Hoist ring body is furnished with yellow chromate finish for improved corrosion resistance.
  • Utilize standard Crosby Red Pin® Shackles to connect to wire rope or synthetic slings (sold separately).
  • Multiple bolt lengths available to meet specific application requirements.
  • Individually Proof Tested to 2-1/2 times Working Load Limit.
  • All sizes are RFID equipped.
Learn More
